Description

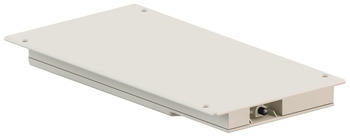

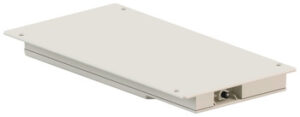

Electronic strike, Libero® 3.0 with sensor in plinth area

• Type : Kit, Electric door opener
• Equipped with : Sensor in plinth area
• Model : 3697-301

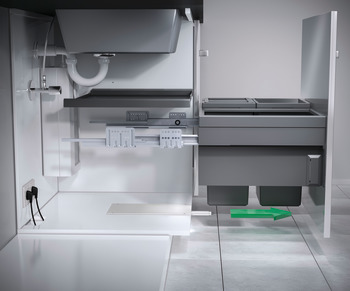

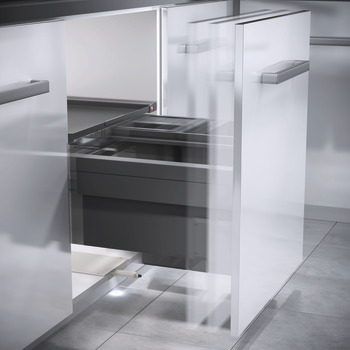

• Area of application : Automatic opening of all waste bins installed behind front panels and of all bottom drawers

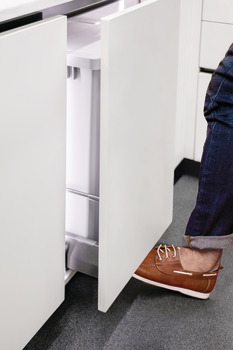

• Suitable for : Can be activated via laser foot sensor in plinth area and/or voice control, integrated dimmable LED location lighting (can be deactivated), adjustable ejection force, adjustable sensor sensitivity
• Version : Low voltage device (5 V) with USB-C socket, 2 A power supply unit and international adapter

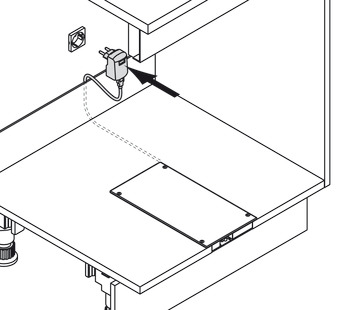

• Installation : For screw fixing to cabinet base panel, plug and play installation Min. installation width : 300 mm

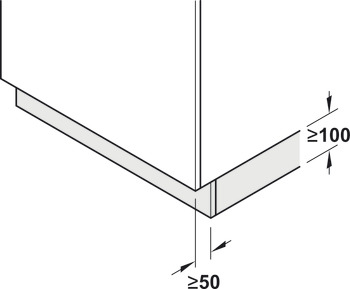

• Plinth height : 100.00 mm

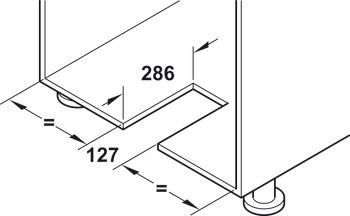

• Dimensions : Cut out: 127 x 286 x 19 (W x D x H)

Supplied with:

• 1 electric door opener
• 1 wall plug power supply unit with country-specific plug and 2 m mains lead
• 1 set of installation instructions
• Fastening screws
