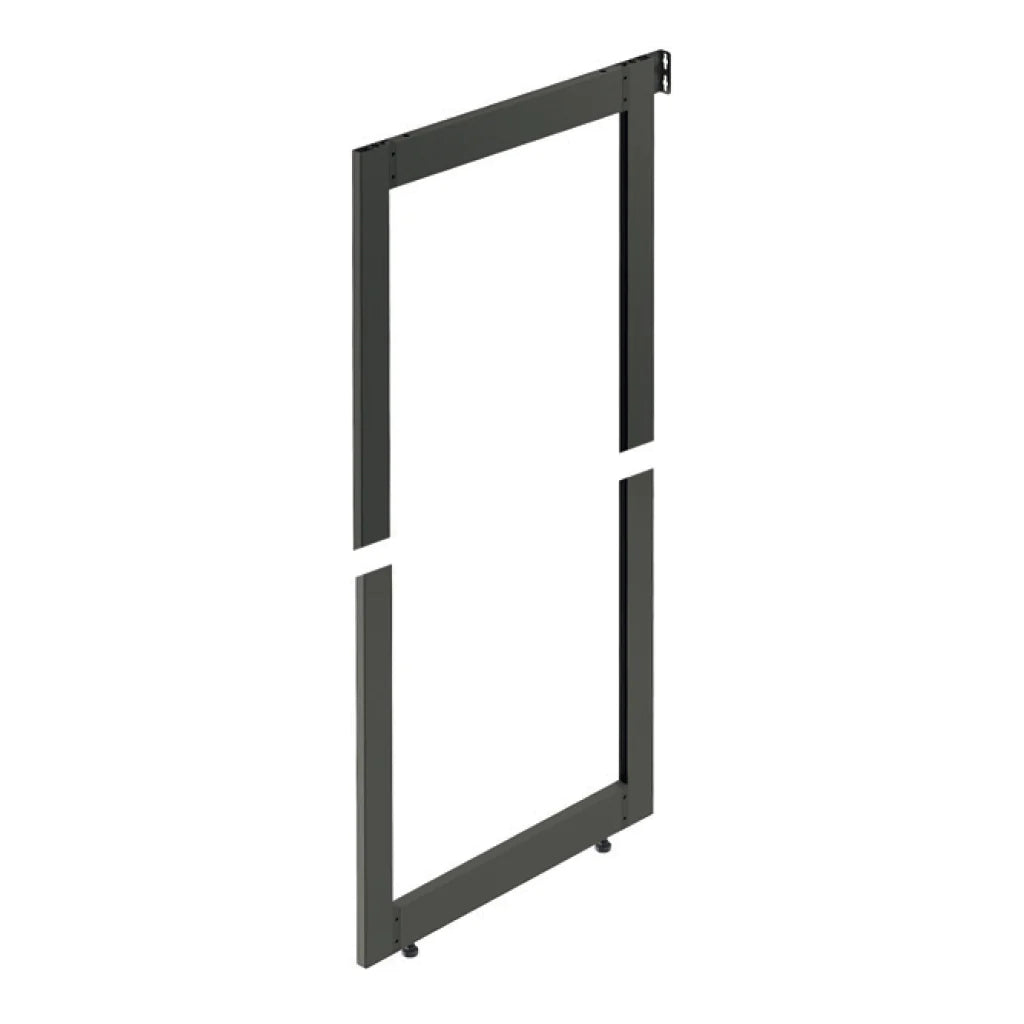

Hafele DressCode Frame System, Aluminium

• Area of application : For individual or walk-in wardrobes and shelf systems

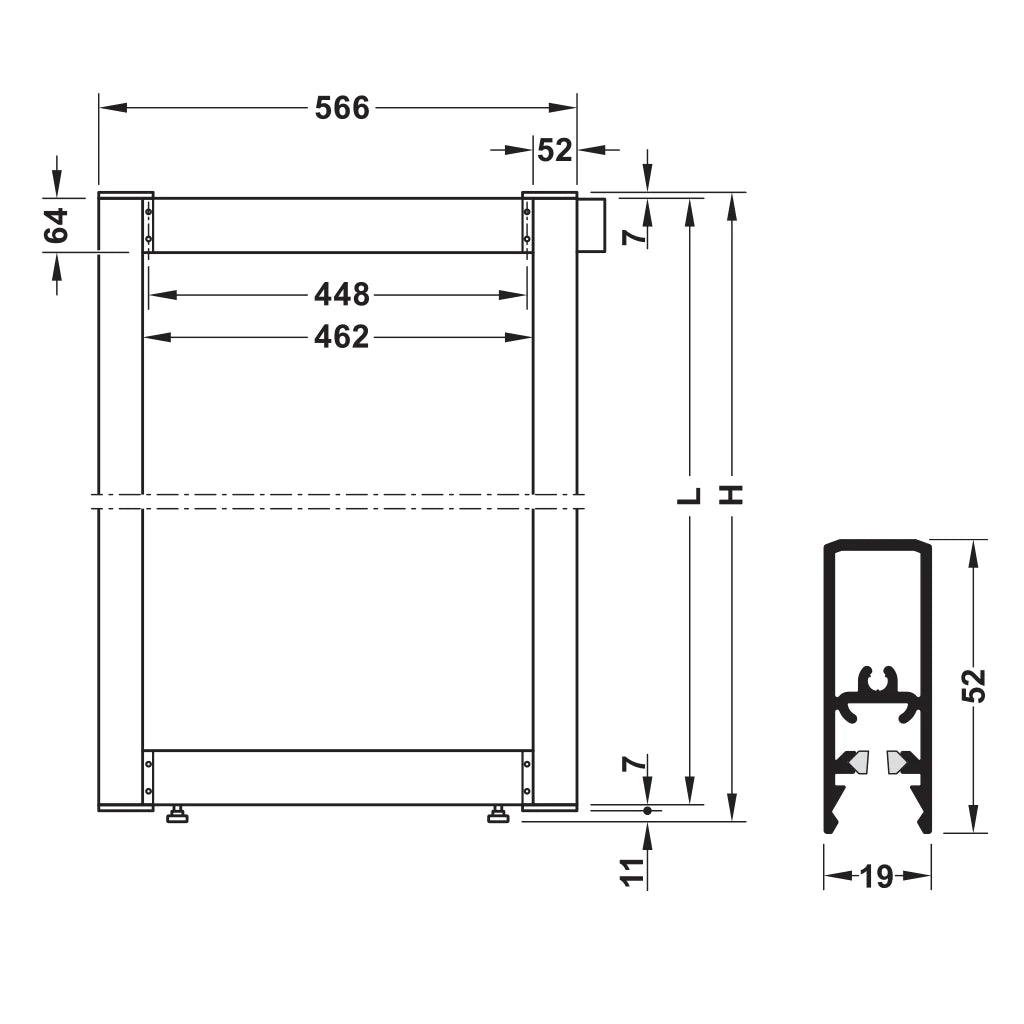

• Profile Length L x System Height H : 2300 x 2325 mm   2940 x 2965 mm
• System depth : 566 mm
• Thickness : 19 mm
• Height adjustment : +14 mm

Installation :

• Frame : For plug fitting
• Foot : For screw fixing in

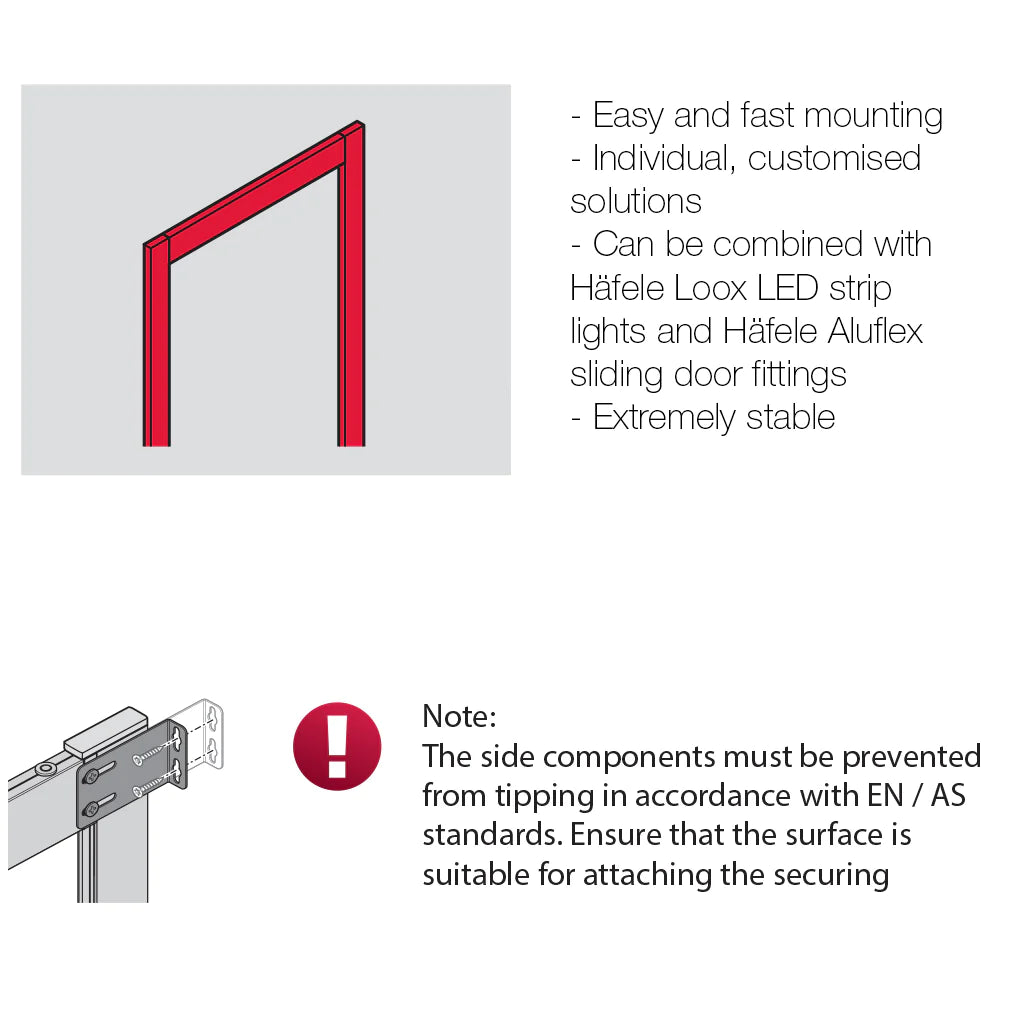

• Struts must be fixed at top and at bottom with hex socket head screw

Version : The side components can be illuminated with Häfele Loox LED strip lights, can be combined with Häfele Aluflex sliding door fittings

Supplied With :

• 2 Profiles
• 2 Aluminium struts
• 1 Wall bracket
• 2 Height adjustable feet
• 14/18 clip-in keder for height adjustment
