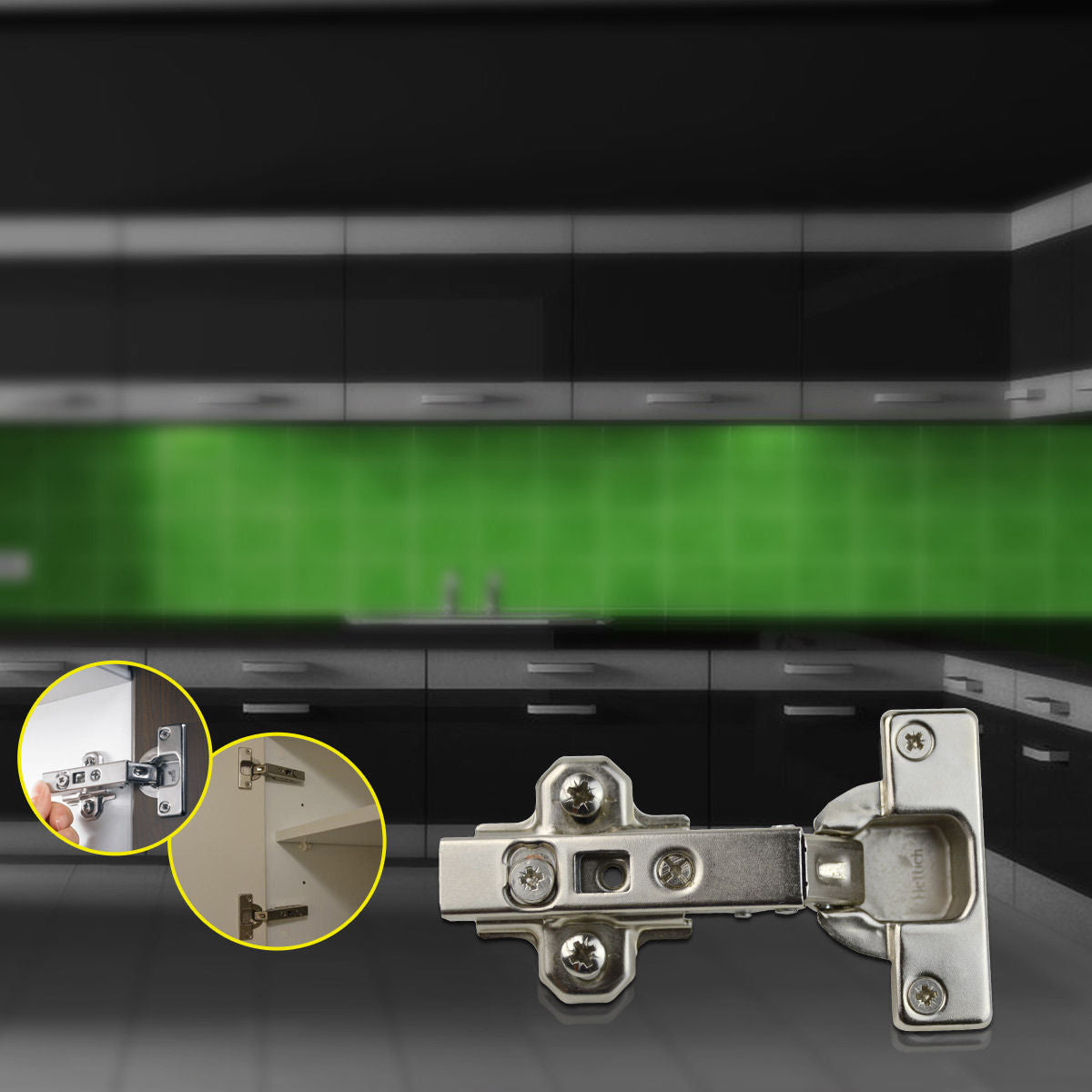

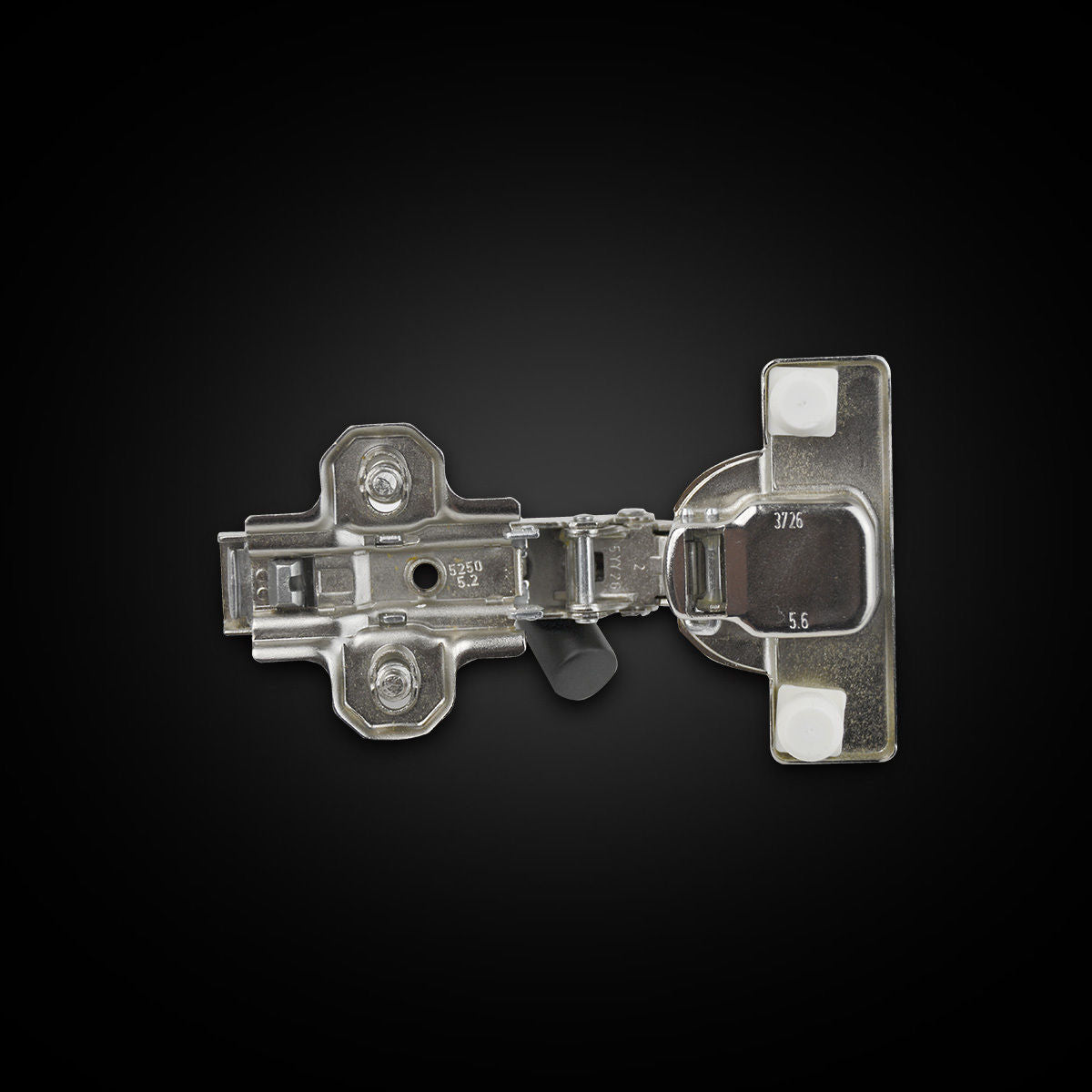

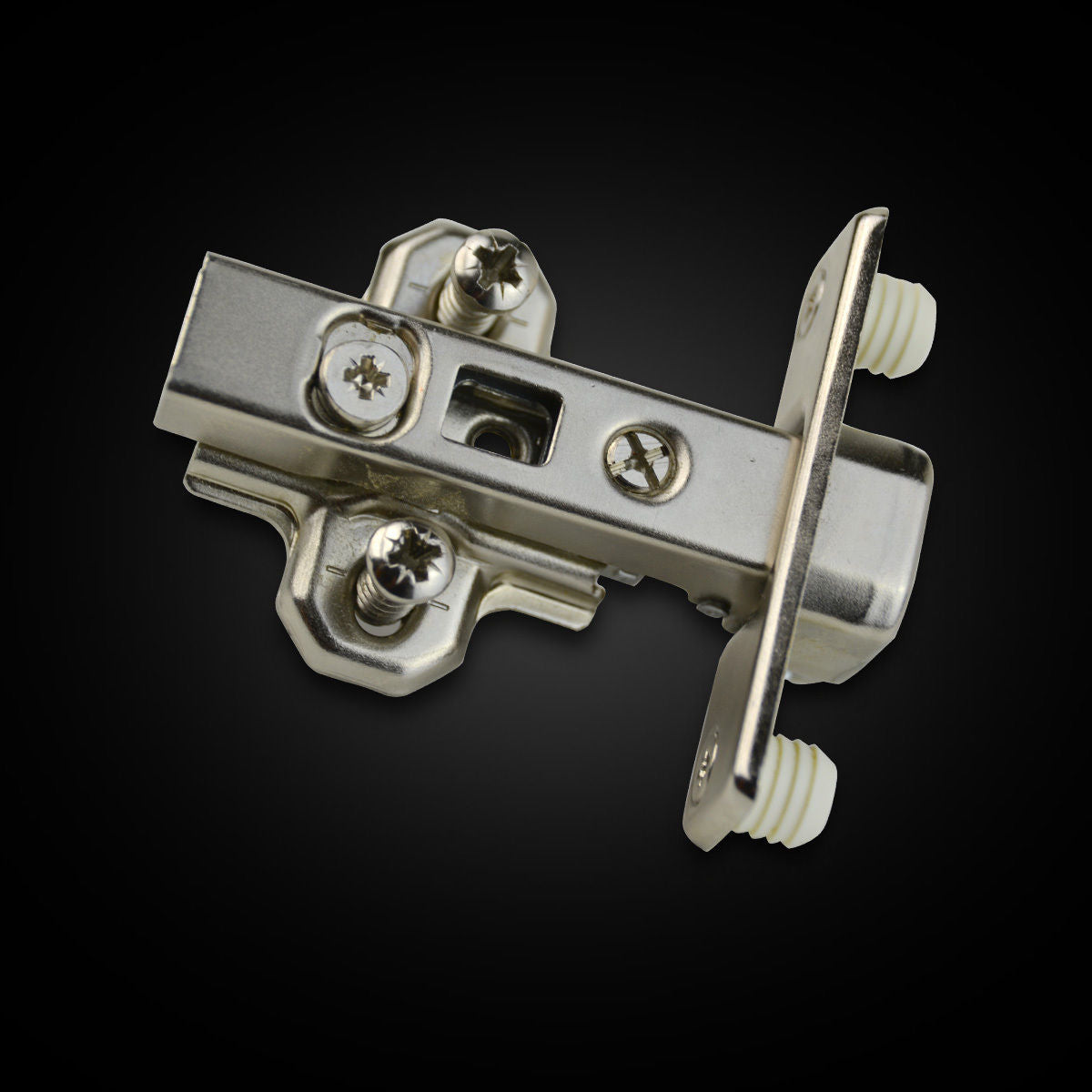

Hettich Concealed Cabinet Hinge for Kitchen Cupboard

Brand new concealed hinge from Hettich. This nickel-plated steel can be used for the doors with thicknesses of 15mm or more. It has cup diameter of 35mm, comes with height adjustment at mounting plate and it has got the opening angle of 110°.

The concealed hinge is easy to fit and it is suitable for kitchen/bathroom cabinet doors, furniture cabinets, cupboard, etc.

We are overstock and must clear them out, Deal direct with the importer/wholesaler and save.

• 1X Hettich hinge
• Brand: Hettich
• Cup Version: T43 Press-in version
• Concealed hinge for snap-on attachment
• Door thickness from 15 mm
• Cup diameter 35 mm

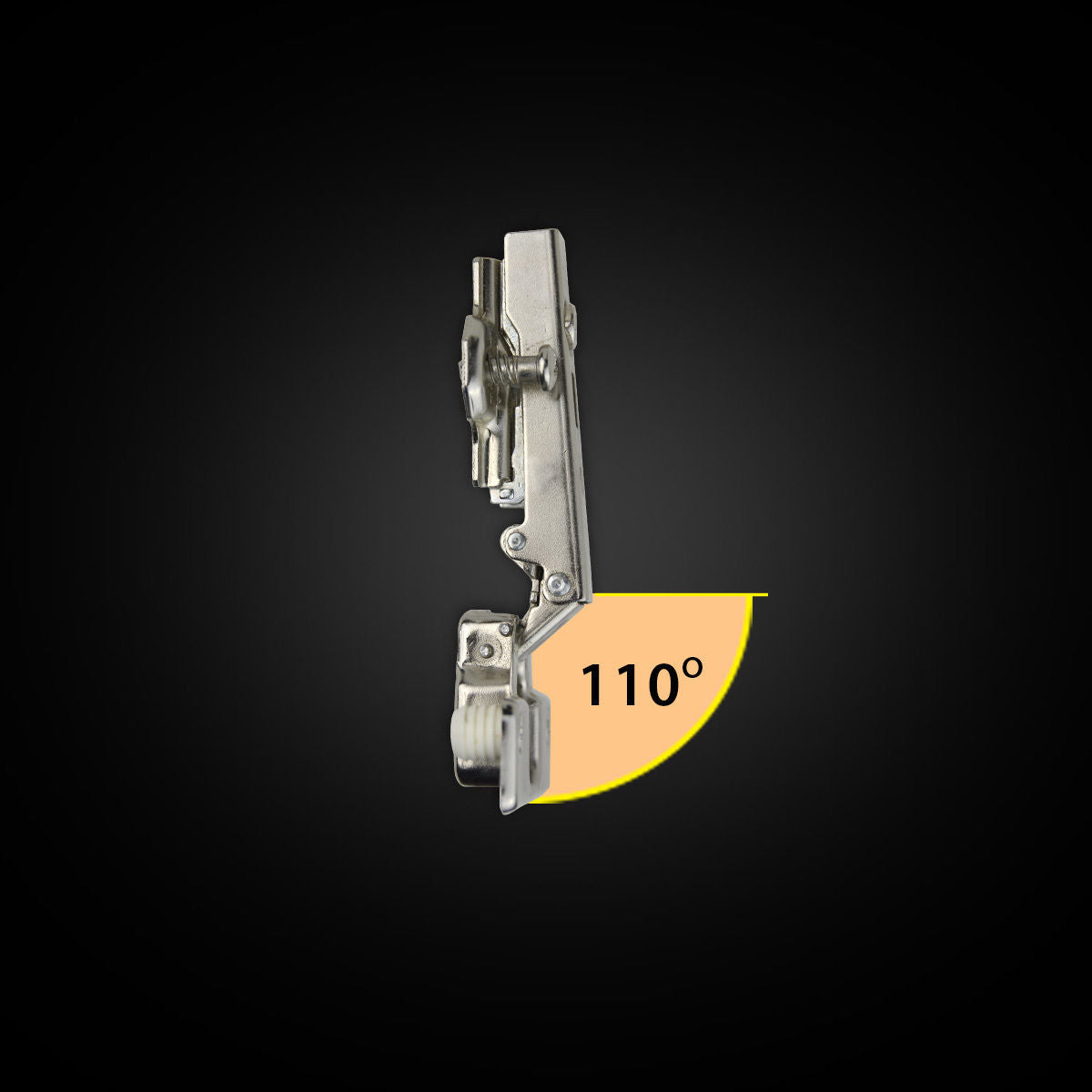

• Opening Angle: 110°
• Mounting Option: Full Overlay
• Hinge cup/arm: nickel-plated steel
• Integrated overlay adjustment + 1,0 mm / - 2,5 mm
• Integrated cam depth adjustment ± 2 mm
• Height adjustment at mounting plate ± 2 mm

Product Features:

• T43 Press-in Hinge version
• Super flat cup design
• Mounting plate system 9000 : The ideal solution for all types of mounting
• Concealed latch: Simple, safe & reliable
• Integrated Overlay adjustment for perfect reveal alignment
• Cam depth adjustment: Exact door depth alignment - without loosening screws
