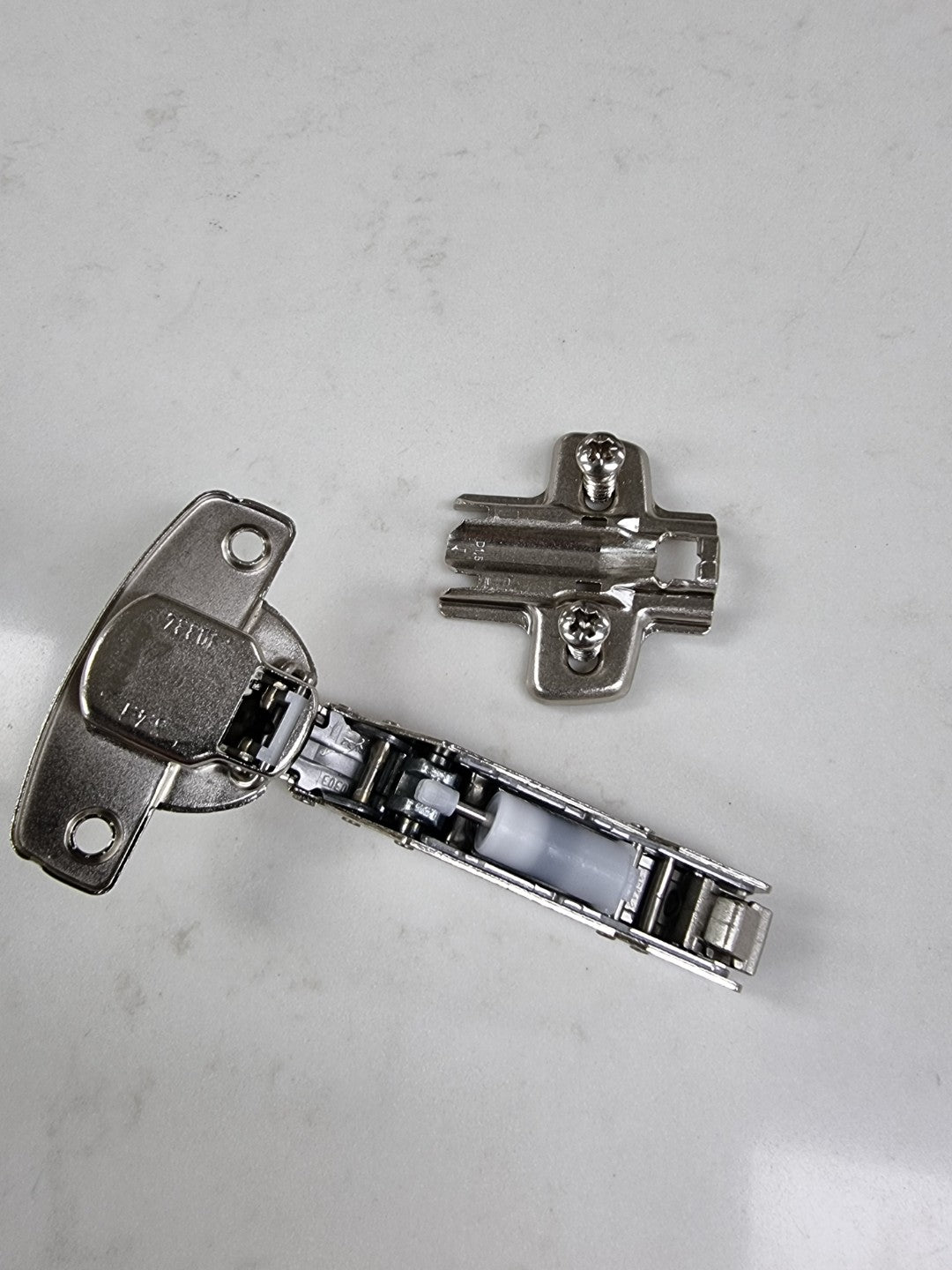

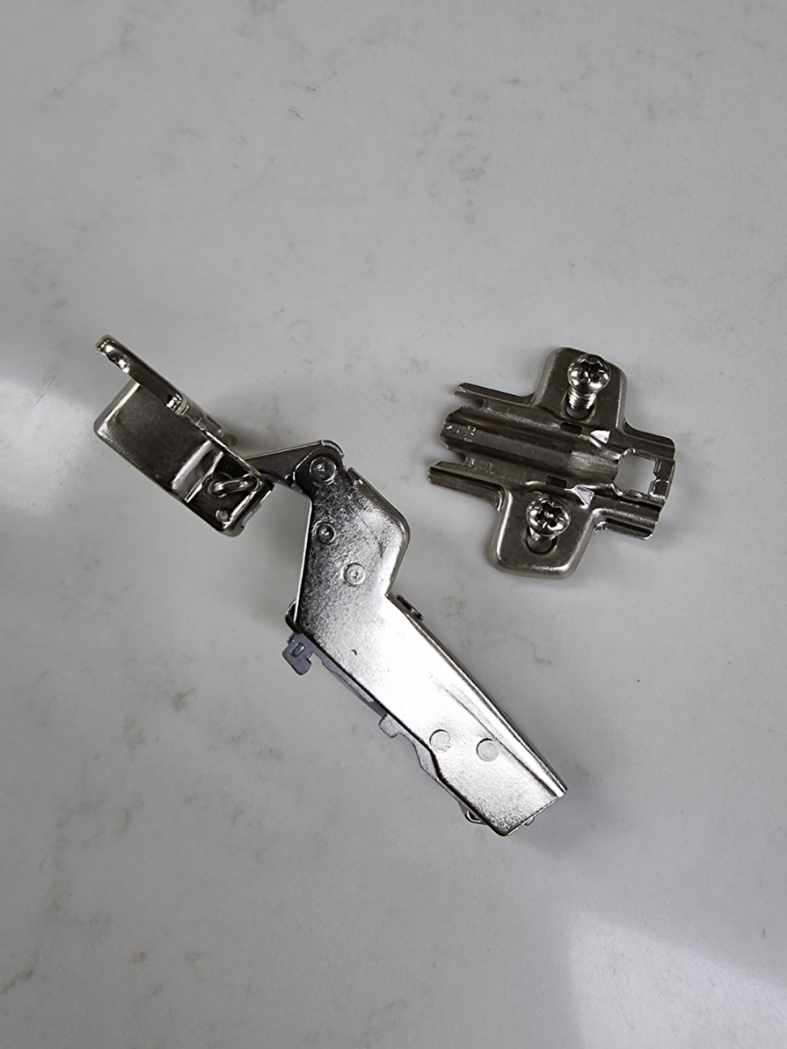

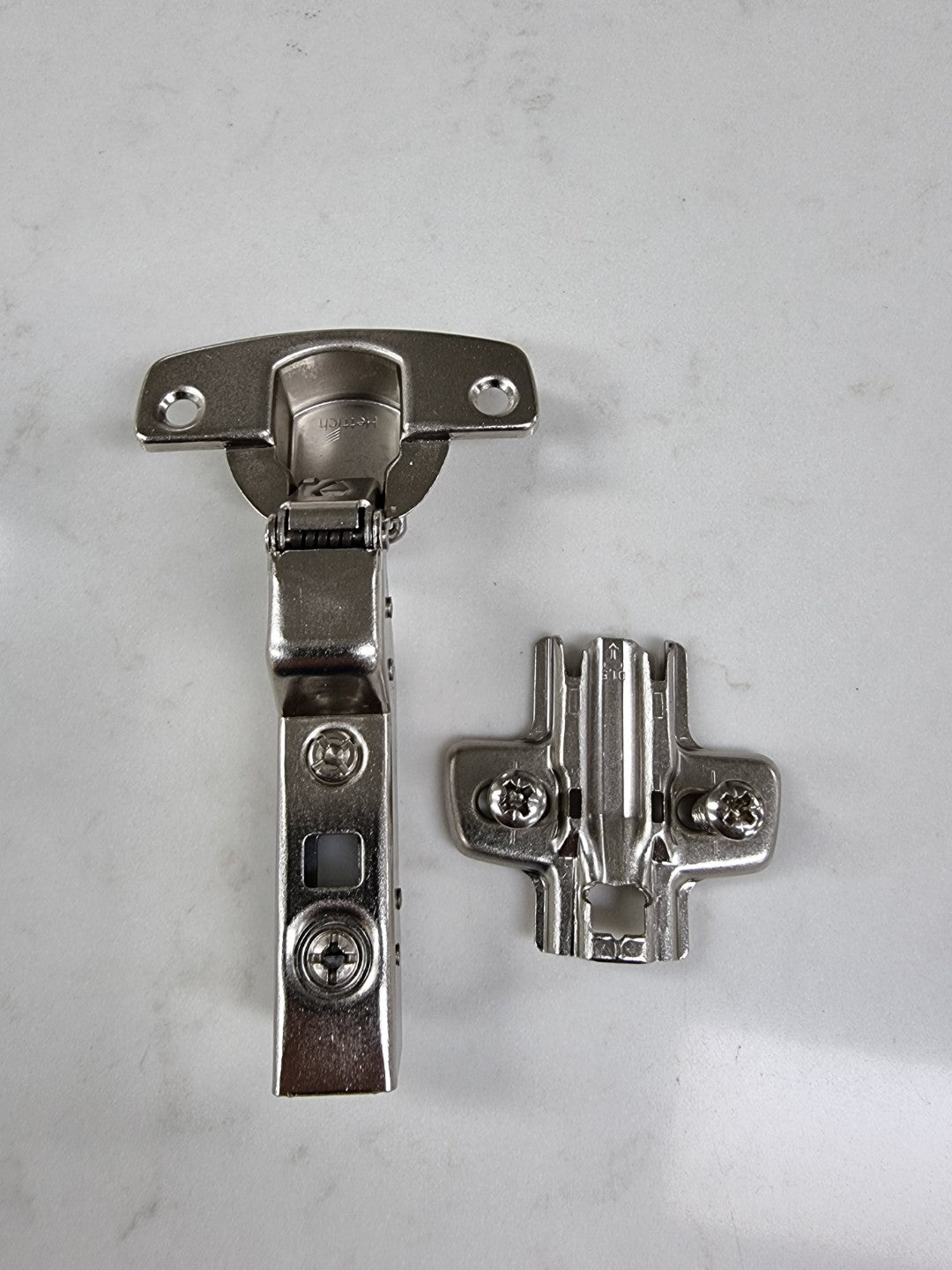

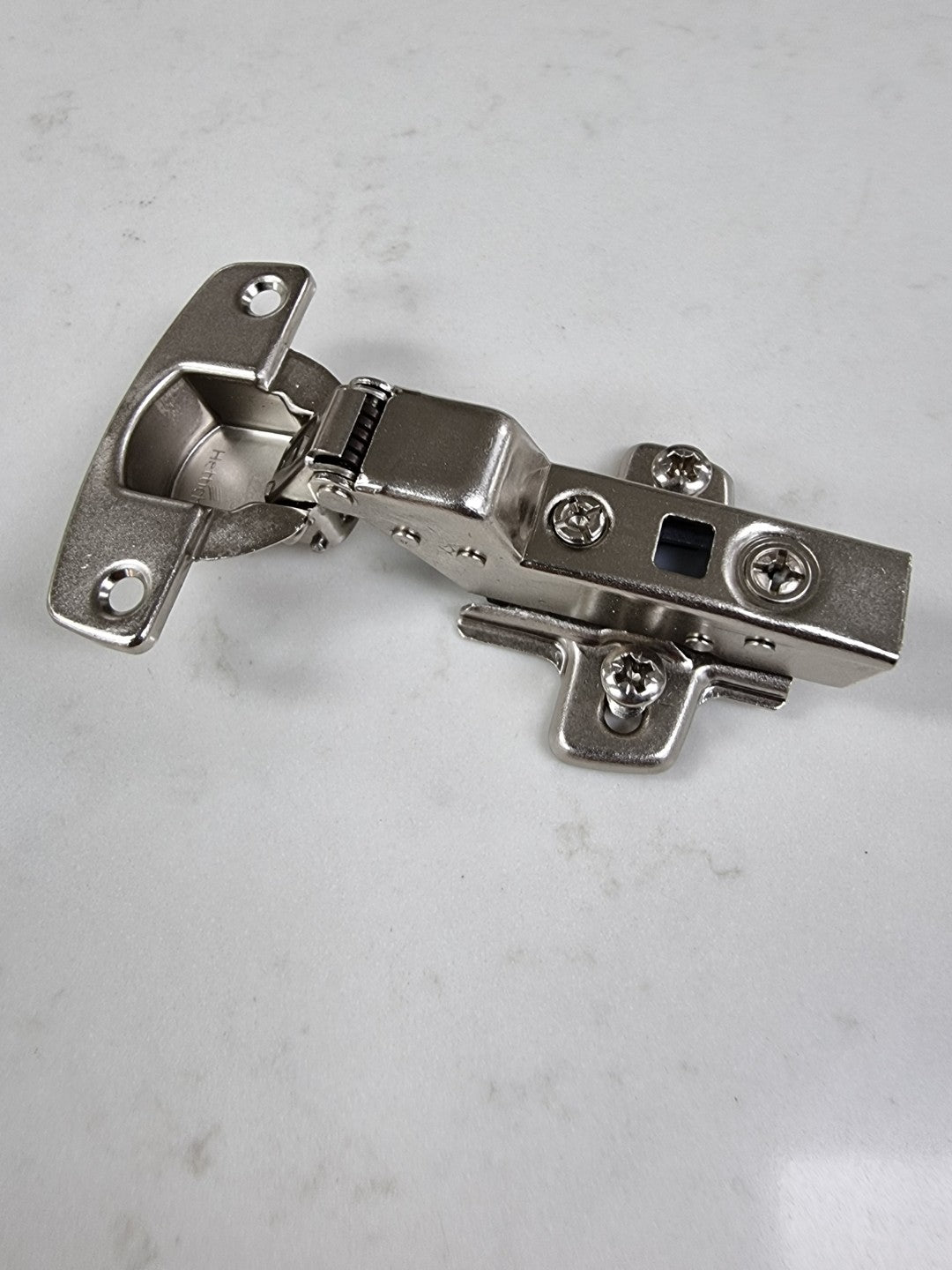

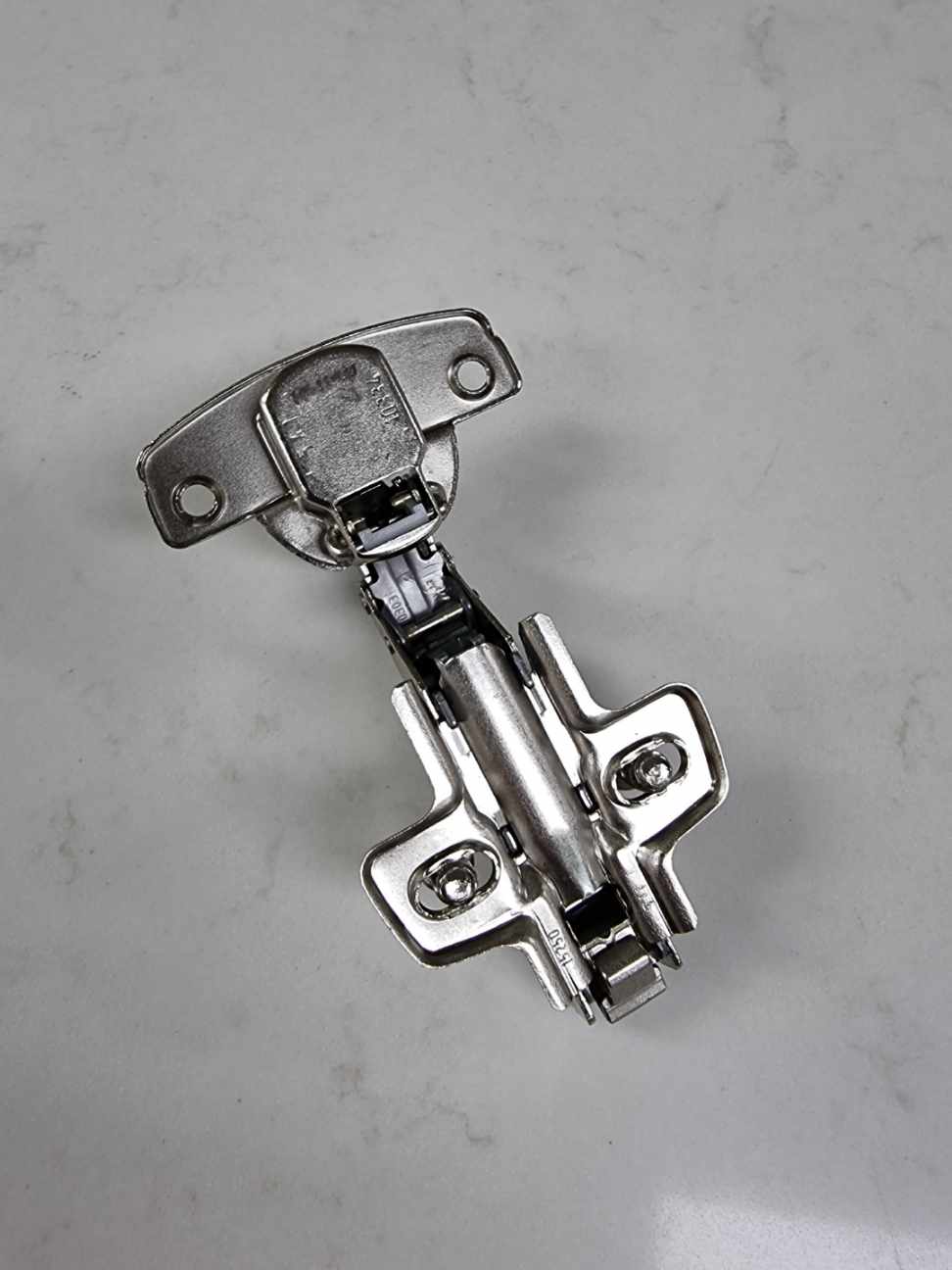

Hettich Inset Sensys 110° Hinge with Integrated Silent System

Hettich Inset Sensys 110° hinge with integrated Silent System (Sensys 8645i), Nickel plated, inset, Opening angle 110°, TH-drilling pattern 52 x 5.5 mm, for screwing on

• Sensys 110° hinge
• With integrated Silent System, with self closing feature (Sensys 8645i)
• Quality classification under EN 15570, Level 3
• Opening angle : 110°
• For door thickness : 15 - 24 mm

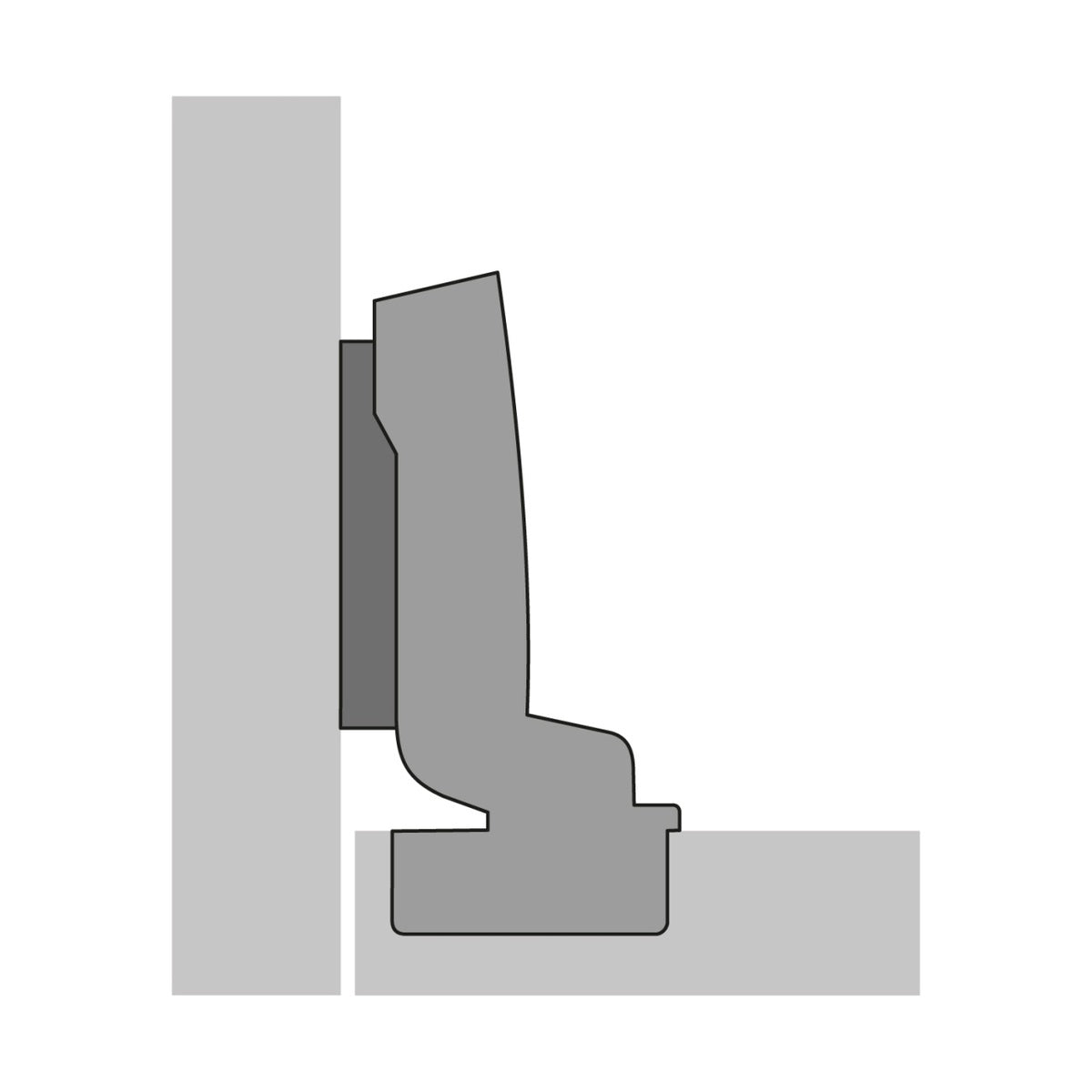

• Door mounting inset

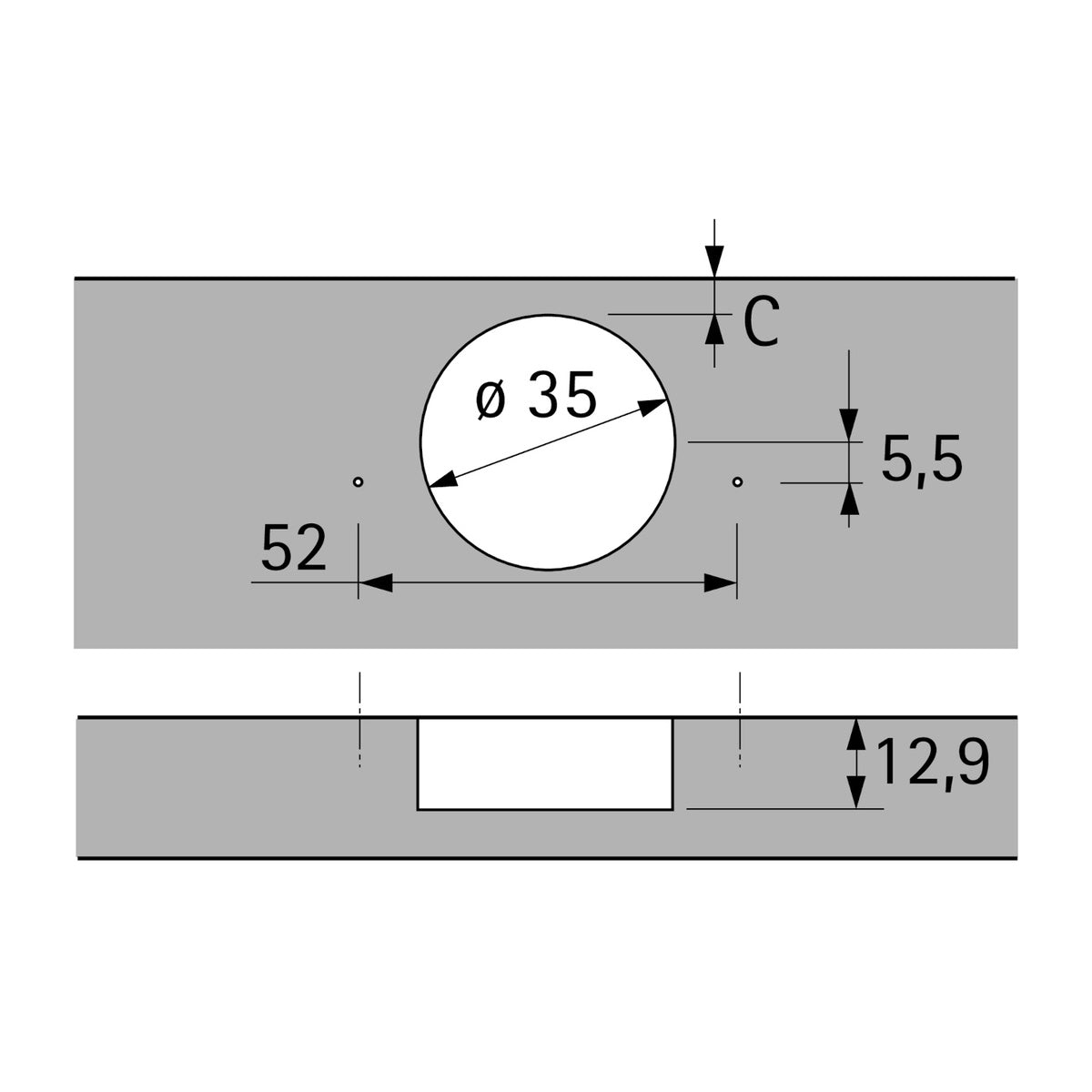

• Drilling pattern : TH 52 x 5,5 mm
• Cup depth : 12.8 mm
• Installation for screwing on
• Integrated overlay adjustment : +2 mm / -2 mm
• Integrated depth adjustment : +3 mm / -2 mm
• Height adjustment at mounting plate
• Steel nickel plated
