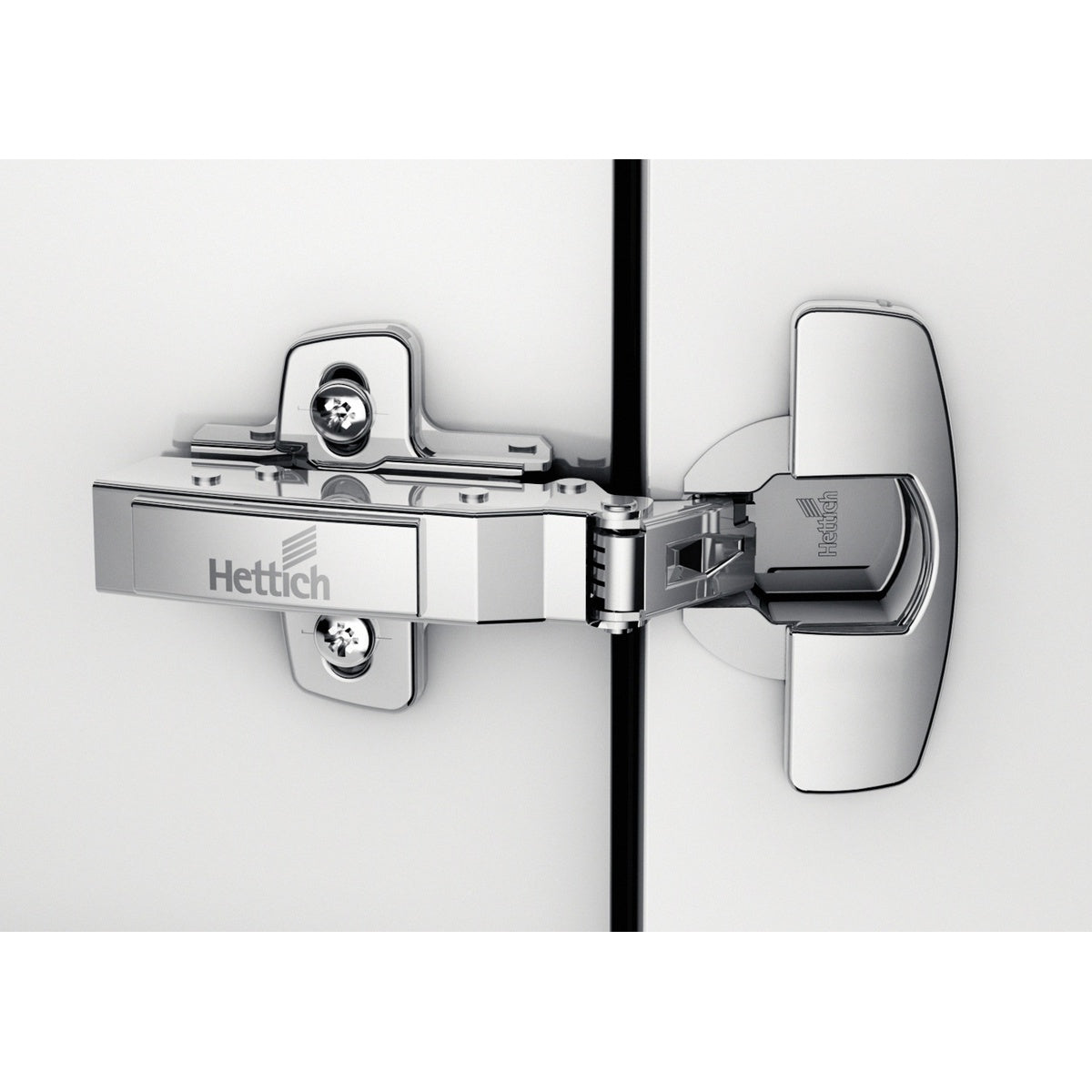

Hettich Soft Close Hinge for Kitchen Cabinet Doors, Sensys 110°hinge

Sensys 110°hinge with integrated Silent System

Brand new concealed hinge from Hettich with integrated soft-close function. This nickel-plated steel can be used for the doors with thicknesses of 15-22mm. It has cup diameter of 35 mm, comes with height adjustment at mounting plate and it has got the opening agle of 110°.

The concealed hinge is easy to fit and it is suitable for kitchen/bathroom cabinet doors, furniture cabinets, cupboard, etc.

• Sensys 110° hinge
• With integrated Silent System, with self closing feature (Sensys 8645i)
• Quality classification under EN 15570, Level 3
• Opening angle 110 °
• For door thickness 15-24 mm
• Door mounting option overlay (B 12.5 mm)
• TH - drilling pattern 52 x 5.5 mm
• Cup depth 12.8 mm
• Integrated overlay adjustment +2 mm / -2 mm
• Integrated depth adjustment +3 mm / -2 mm
