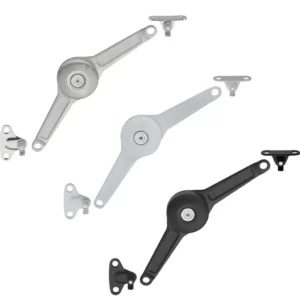

Hafele Duo Standard – Flap Fitting

0 out of 5


SKU: N/A Category:


  • Adjustment facility : Holding power adjustment
  • Edge distance : 37 mm
  • Area of application : For flaps made of wood or with aluminium frame From frame width 45 mm
  • Mounting : For left and right hand use
  • Installation : For chipboard screws Without tools (clip system) onto pre-mounted mounting bracket

Supplied with :

  • Comes in a complete set
  • 1 Lid stay
  • 1 Mounting bracket for cabinet
  • 1 Screw-on bracket for flap

Features : Suitable for flaps with handle or push-to-open function
Adjusting the arms (overshear) turns the lid stay into a flap stay
Less space required inside the cabinet
Wear-resistant friction coupling with large adjusting range
Can be used on one or both sides (depending on the flap size)
Holding power can be adjusted individually to suit flap weight
The soft closing function is provided in the closing direction in combination with 110º concealed hinges with soft closing mechanism (Push hinges for PTO application)


Additional information


Black, Nickel plated, White


Zinc alloy


45 mm – 373.66.212, 45 mm – 373.66.26245 mm, 45 mm – 373.66.612
