Description

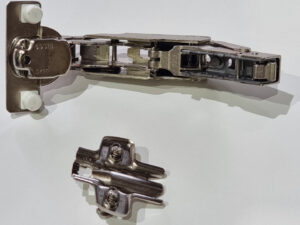

Brand new concealed hinge from Hettich with nickel-plated steel finish. It can be used for the doors with thickness
of 16mm or more. It has cup diameter of 35 mm, comes with height adjustment at mounting plate.

This concealed hinge is easy to fit and it is suitable for kitchen/bathroom cabinet doors, furniture cabinets,
cupboards, etc.

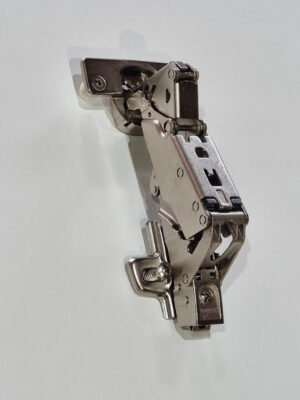

• Sensys wide angle hinge, with zero protrusion
• With self closing feature (Sensys 8657)
• Quality classification under EN 15570, Level 3
• Opening angle 165°
• For door thickness 15 – 24 mm

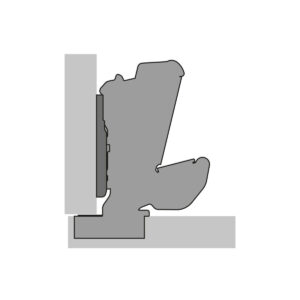

• Door mounting option overlay

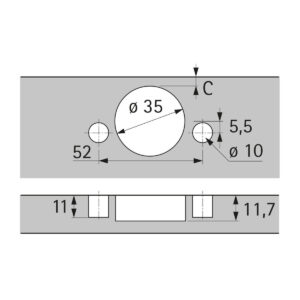

• Drilling pattern TH 52 x 5,5 mm
• Cup depth 11.6 mm
• Installation for pressing in
• Integrated overlay adjustment +2 mm / -2 mm
• Integrated depth adjustment +3 mm / -2 mm
• Height adjustment at mounting plate
• Steel / nickel plated die-cast zinc
