Intermat Angle Hinge 9936 W90, Inset, Opening Angle 95°

Description

Intermat angle hinge W90 (Intermat 9936 W90), inset, Opening angle 95°, TH-drilling pattern 52 x 5.5 mm, for screwing on

• Intermat angle hinge W90
• With self closing feature (Intermat 9936 W90)
• Quality classification under EN 15570, Level 2
• Opening angle 95°
• For door thickness 14 – 28 mm

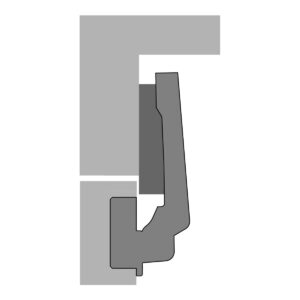

• Door mounting option inset

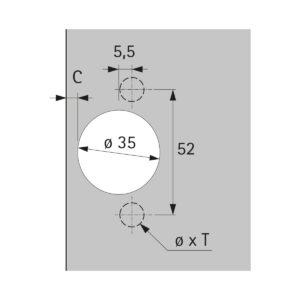

• Drilling pattern TH 52 x 5,5 mm
• Cup depth 10.5 mm
• Installation for screwing on
• Integrated adjustment of door offset +2 mm / -2 mm
• Integrated reveal adjustment +2 mm / -2 mm
• Height adjustment at mounting plate
• Steel / die-cast zinc nickel plated

Mounting plate not included see our store for options

Hinge cap not included see our store for options

Not soft close

For screw in option screws not provided
