Description

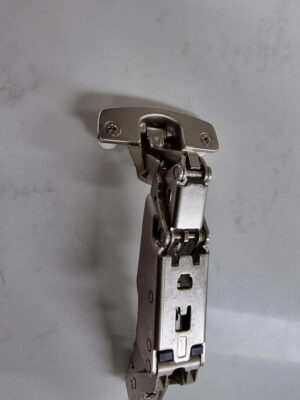

- Sensys wide angle hinge, with zero protrusion
- With integrated Silent System, with self closing feature (Sensys 8657i)
- Quality classification under EN 15570, Level 3
- Opening angle 165°
- For door thickness 15 – 32 mm
- Door mounting option overlay

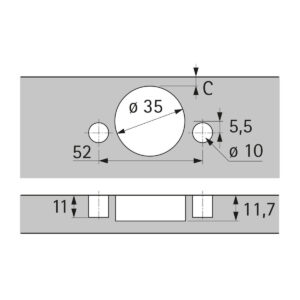

- Drilling pattern TH 52 x 5,5 mm
- Cup depth 11.6 mm
- Installation for pressing in
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +3 mm / -2 mm
- Height adjustment at mounting plate
- Steel / nickel plated die-cast zinc
Please note number on back of hinges are not model numbers
Additional information
Size | Free size – 9099541 |
---|
