Hettich Inset Sensys 110° Hinge with Integrated Silent System

$17.85

SKU: N/A Category:
Clear

Description

Hettich Inset Sensys 110° hinge with integrated Silent System (Sensys 8645i), Nickel plated, inset, Opening angle 110°, TH-drilling pattern 52 x 5.5 mm, for screwing on

  • Sensys 110° hinge
  • With integrated Silent System, with self closing feature (Sensys 8645i)
  • Quality classification under EN 15570, Level 3
  • Opening angle : 110°
  • For door thickness : 15 – 24 mm

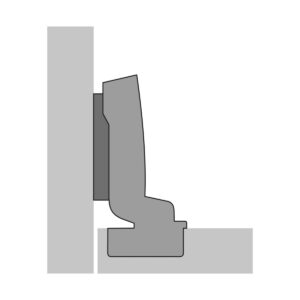

  • Door mounting inset

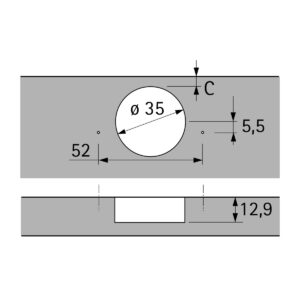

  • Drilling pattern : TH 52 x 5,5 mm
  • Cup depth : 12.8 mm
  • Installation for screwing on
  • Integrated overlay adjustment : +2 mm / -2 mm
  • Integrated depth adjustment : +3 mm / -2 mm
  • Height adjustment at mounting plate
  • Steel nickel plated
  • Additional information

    Size

    Free size – 9071207
