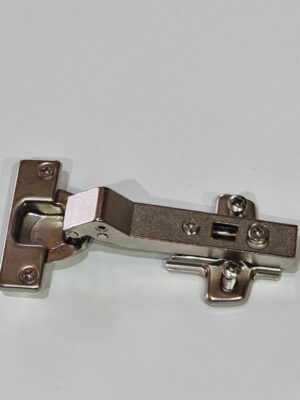

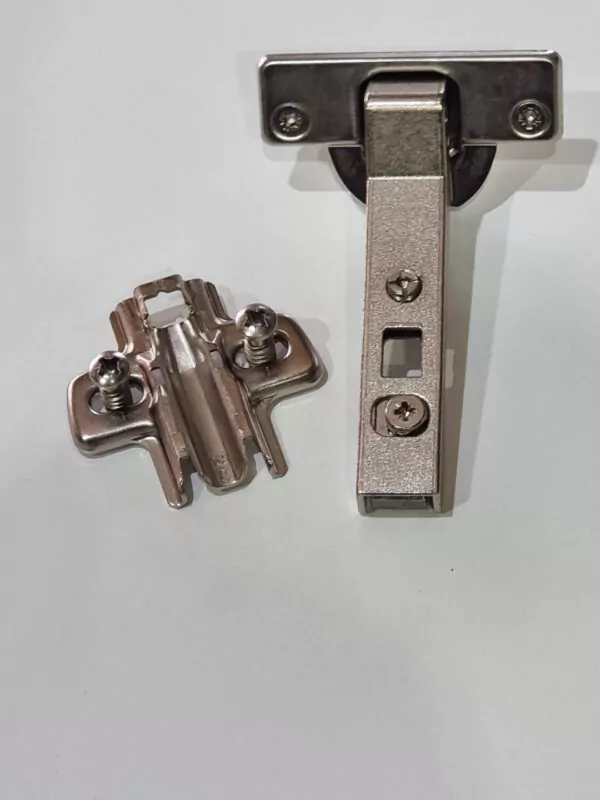

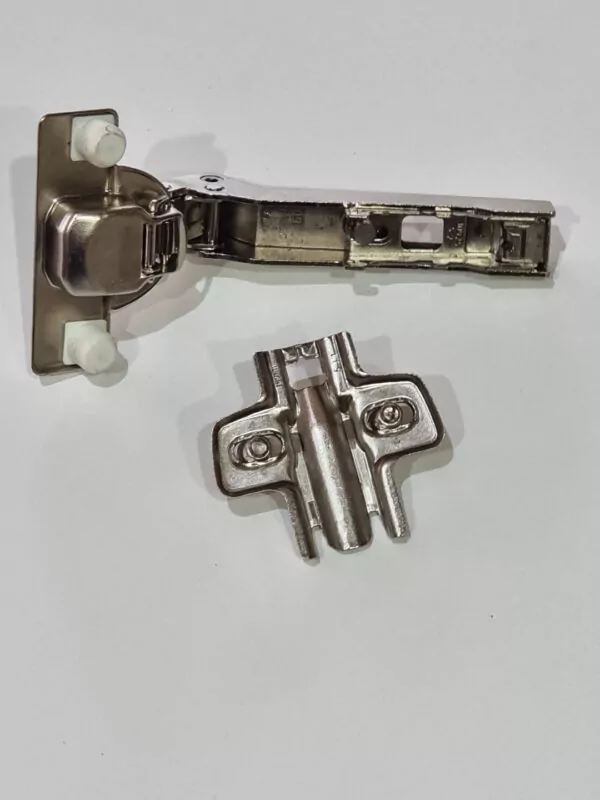

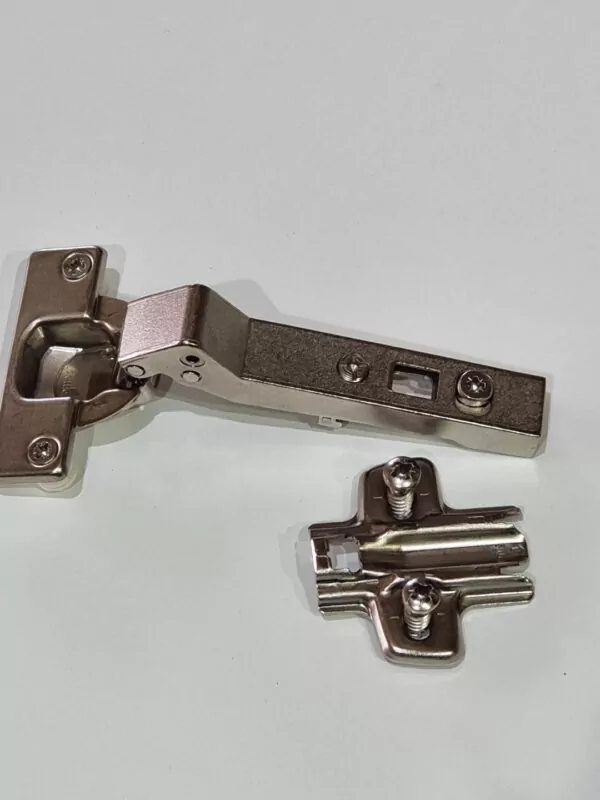

Hettich Concealed Hinge Kitchen Corner Cabinets 45 Degree


SKU: N/A Category:


Brand new concealed hinge from Hettich, suitable for corner cabinets with 45° face angle. The nickel-plated die-cast zinc gives extra strength to the hinge arm whereas the hinge cup has got the standard nickel-plated steel. It can be used for the doors with thickness of 16mm or more. It has cup diameter of 35 mm, comes with height adjustment at mounting plate.

This concealed hinge is easy to fit and it is suitable for the corner cabinets of kitchen, bathroom, cupboards etc.

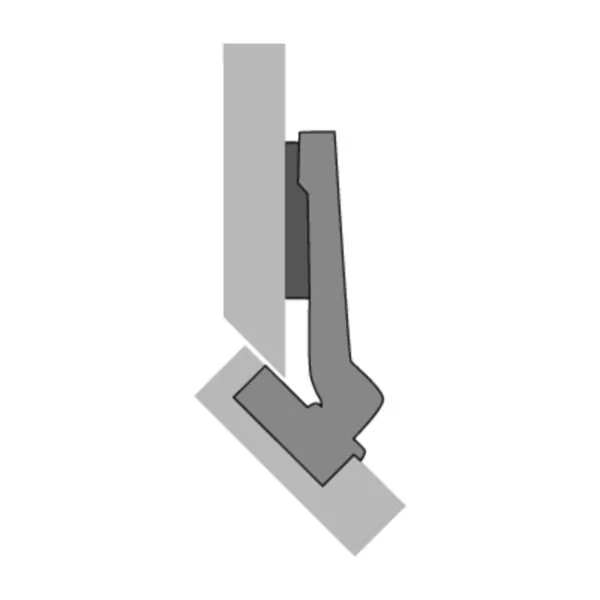

  • Intermat angle hinge W45
  • With self closing feature (Intermat 9936 W45)
  • Quality classification under EN 15570, Level 2
  • Opening angle 95°
  • For door thickness 14 – 32 mm
  • Door mounting option overlay
  • Drilling pattern TH 52 x 5,5 mm
  • Cup depth 10.5 mm
  • Installation for pressing in
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +2 mm / -2 mm
  • Height adjustment at mounting plate
  • Steel / nickel plated die-cast zinc

Please note this is the 75mm base length. For 65mm base length pricing, please contact us to enquire.
