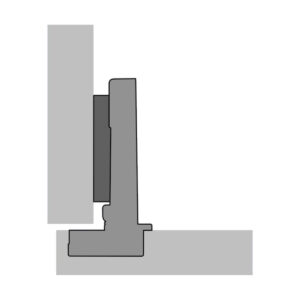

Hettich Alfresco Veosys Concealed Stainless Steel Hinge


SKU: N/A Category:


  • Ideal for Alfresco BBQ Kitchen Vanity Hettich drilling pattern 52mm 5.5mm
  • Concealed hinge with clip on installation and integrated Silent System
  • Quality classification under EN 15570, Level 2
  • Corrosion proof, 120h NSS (neutral salt spray test) to DIN EN ISO 9227
  • For door thickness of 14 – 22 mm
  • Cup diameter 35 mm
  • Cup depth 11.5 mm
  • Integrated overlay adjustment +/- 2 mm
  • Integrated depth adjustment + 2.5 mm / – 1.5 mm
  • Height adjustment at mounting plate
  • stainless steel S 304 grade
  • Can be used on wooden, aluminum frame min 50mm wide

Stainless steel bracket description below

  • For 4.5 mm ø x 16 mm countersunk screws
  • Quality classification under EN 15570, Level 2
  • Hole spacing 32 mm
  • Oblong hole height adjustment ± 3 mm
  • stainless steel

Please note that these are screw in hinges and brackets, screws not supplied you will need to source your own stainless steel screws, Cover cap on hinge arm is not included and an extra option add on.

Additional information


Stainless steel


Free Size – 9289590, Free Size – 9289598
