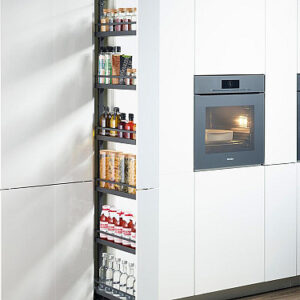

Dispensa 170 Pantry Pull Out Unit, Arena Style

Name: Dispensa 170 Pantry Pull Out Unit, Arena Style - Handles and more
Availability: InStock

0 out of 5

$1,282.97 – $1,571.58

SKU: N/A Category: Pantry Storage

Tray Model
Size	Clear

Description

Features:	Can be used for cabinets with external width of 170 mm High flexibility for different cabinet heights due to adjustable frame Door mounted to pull out Including SoftStopp Pro damper package Complete sets with two equipment variants available LGA certified With ClickFixx assembly and adjustment system With synchromatic runner system

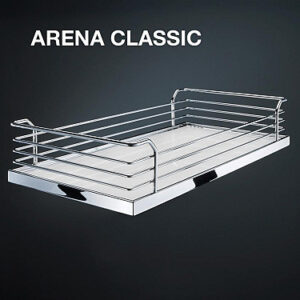

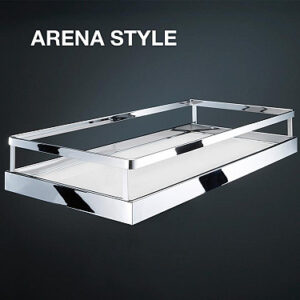

Finish:	ARENA STYLE: All components: Brilliant White Trays: ARENA Style Gallery rails: Bright chrome Base: Ice White with Anti-Slip Coating ARENA CLASSIC: All components: Brilliant White Trays: ARENA Classic Gallery rails: Bright chrome Base: Standard White with Anti-Slip Coating ANTHRACITE: All components: Anthracite Trays: ARENA Style Gallery rails: Anthracite Base: Anthracite with Anti-Slip Coating
Number of trays:	For inside cabinet 1600 – 2000 mm: 5 For inside cabinet 1900 – 2300 mm: 6
Load capacity:	Max. 100 kg

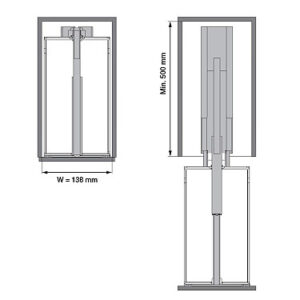

Internal cabinet depth:	Min. 500 mm
Inside cabinet height:	1600 – 2000 mm 1900 – 2300 mm
External cabinet width:	Min. 170 mm
Tray dimensions:	Arena Style: 100 x 465 x 97 mm Arena Classic: 100 x 462 x 106 mm

Tray Model	Anthracite, Arena Classic, Arena Style
Finish	ARENA STYLE
Size	1600 – 2000 mm – 546.54.420, 1600 – 2000 mm – 546.59.020, 1600 – 2000 mm – 546.59.120, 1900 – 2300 mm – 546.59.030, 1900 – 2300 mm – 546.59.130
