Hafele 94° Mini Series 400 Hinges
$3.79 – $4.06
- Description
- Additional information
- Store Policies
- Enquiries
Description
- Version : For narrow frames
- Material : Steel (cup) Zinc-alloy (hinge arm)
- Min. Drilling depth : 11.5 mm
- Adjusting facility : Lateral adjustment from -1.5 to +5.5 mm Height adjustment from -2 to +2 mm
- Fixing door to carcase : Sliding on with Salice A mounting plates or quick fixing with Salice SM mounting plates

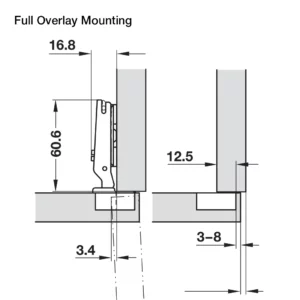

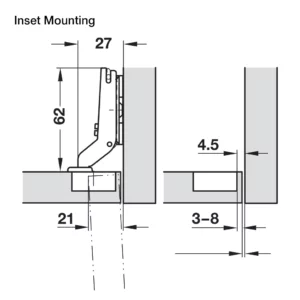

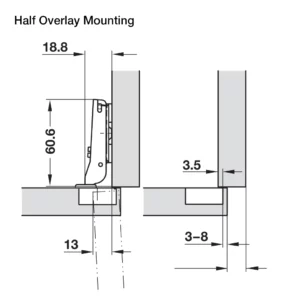

- Model : Full Overlay Mounting Half Overlay Mounting Inset Mounting
- Cup fixing : Screw fixing
- Drilling pattern : 38/7.5
Additional information
| Finish | Nickel-plated |
|---|---|
| Size | 94º Full Overlay Mounting – 329.41.500, 94º Inset Mounting – 329.41.503 |
