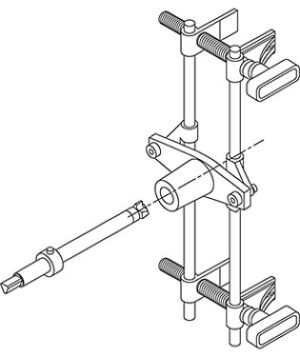

Hafele DBB Mortice Jig and Fittings, Carry Set


SKU: N/A Category:


  • Use with a drill with 2,000-3,000 rpm with hammer action off and a 1/2″ chuck
  • Max. door thickness (standard housing): 55 mm
  • Max. door thickness (special housing): 80 mm
  • Max. vertical movement (average 45 mm thick door): 240 mm
  • Door and frame with offset morticer max. 95 mm
  • Screw-on design precision, carbide tipped mortice wood cutters
  • Cuts lock forend as well as lock body
  • Self-centring action
  • Achieves an accurate depth of cut to hardwood and softwood doors
  • Also suitable for tubular latches, rack bolts and concealed door closers when used in conjunction with the plunging cutters
  • Vertical guides, height and depth stops mean you cannot over run the cut area
  • Product type: DBB Mortice Jig and Fittings
  • Area of application: Cuts a mortice for lock body and faceplates of most mortice locks and latches
  • Material: Steel jig rods. Aluminium housing and clamps
  • Length: 220 mm
  • Supplied with:
    1 Mortice Jig
    1 Standard screw on shaft, 220 mm length (for locks up to 100 mm deep)
    1 ø19 mm carbide tipped cutter
    1 ø22.2 mm carbide tipped cutter
    1 ø25.4 mm carbdie tipped cutter
    Instruction booklet
    1 Allen key

Additional information


220mm Length – 001.67.700
