Description

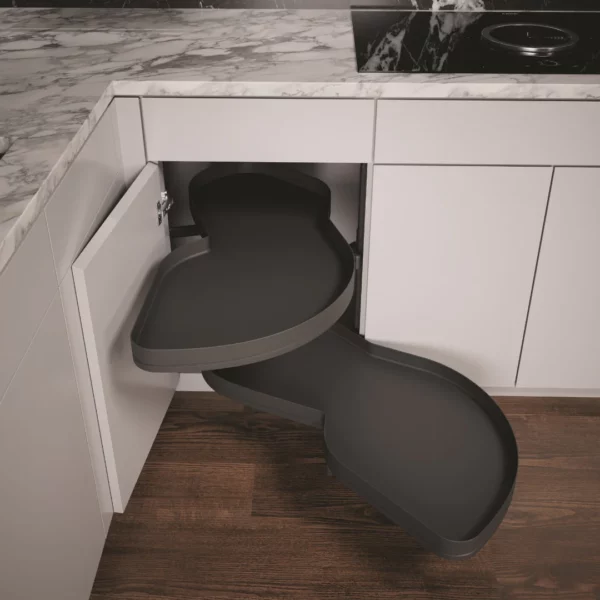

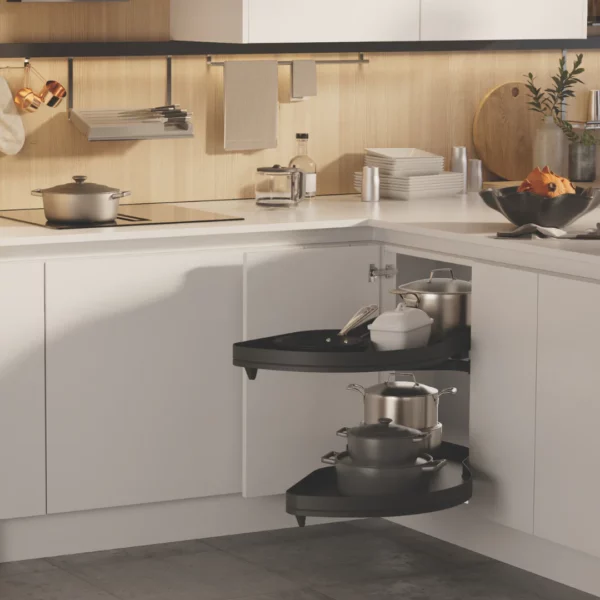

LeMans II ST.

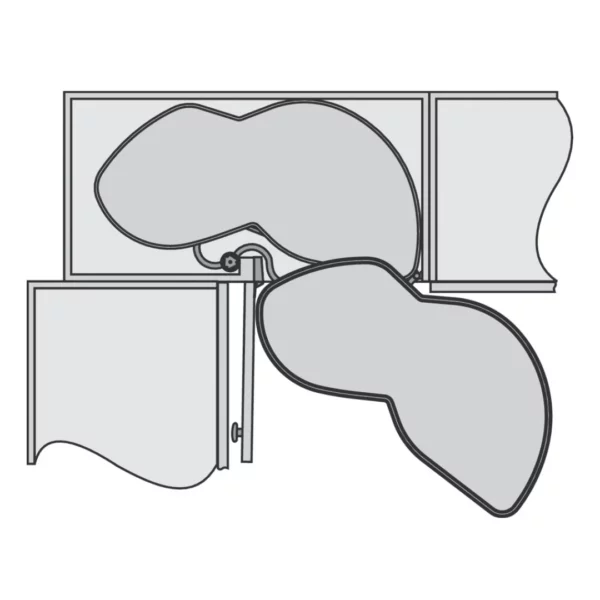

• Area of application : For convenient access to hard‑to‑reach blind corner cabinets
• Material : Steel
• Minimum installation depth (mm) : 500mm
• Minimum installation Height (mm) : 600mm-750mm
• Colour/Finish : Anthracite
• Load bearing capacity : 50kg – Total, 25kg – Per Shelf
• Installation : For behind Hinged Doors

Supplied with :

• 2 x Shelves
• 1 x Axle
• Drilling template

Notes : Installation with blind panel hinges recommended. When installing with a pole at 110 degrees, ensure the post is no wider than 90mm to allow full movement of the mechanism.
