Description

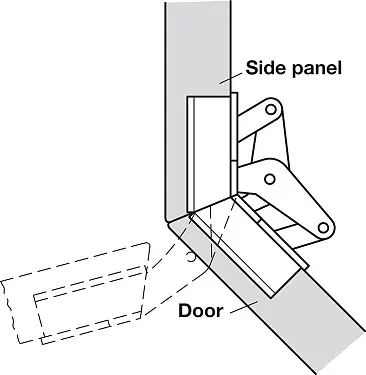

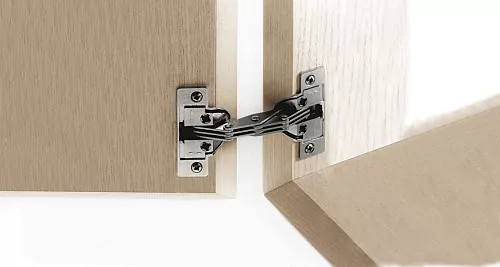

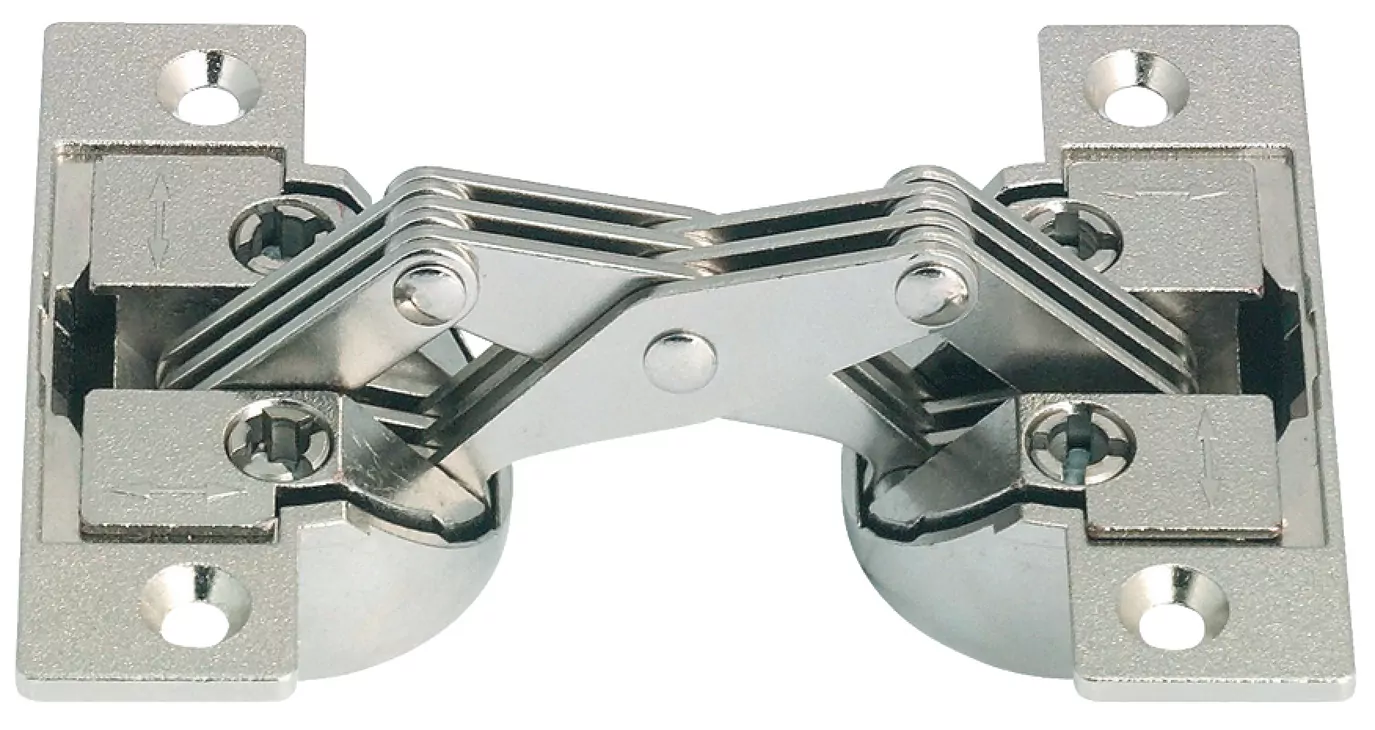

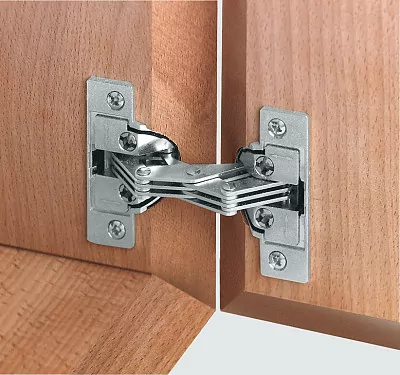

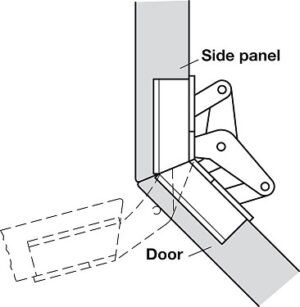

• The only hinge that is used for furniture constructions with mitre joint at the cabinet and the furniture door.
• The mitred hinge is not visible from the outside when the door is closed.
• Area of application : for 45 mitre applications
• Concealed hinge version : mitre
• For door material : Wood
• Door processing for assembly : cup drilling
• Opening angle : 135
• For door thickness :  ≥ 16 – ≤ 22 mm
• Side panel thickness : 16 20 mm

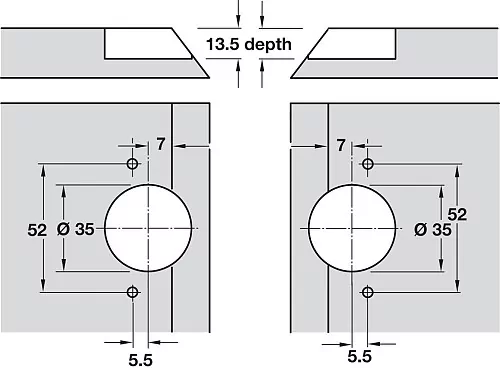

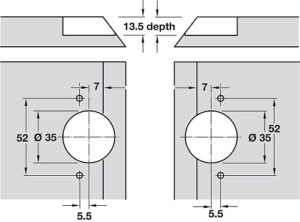

• Cup drilling depth : 13.5 mm
• Cup drilling : 35 mm
• Cup fixing : for screwing

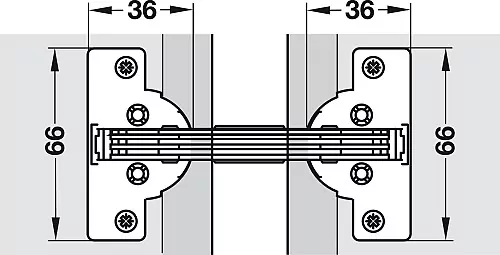

• Cup screw distance : 52 mm
• Drilling pattern : 52/5.5
• Adjustment facility : 3-dimensional
• Installation : For screw fixing
