Description

• Brand : Hettich

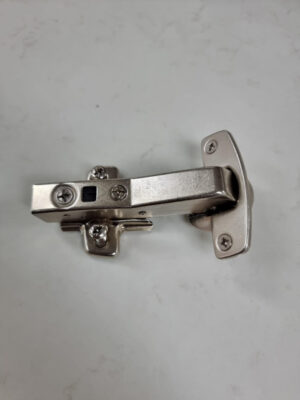

• Sensys angle hinge W45
• With integrated Silent System, with self closing feature (Sensys 8639i W45)
• Quality classification under EN 15570, Level 3
• Opening angle 95°
• For door thickness 15 – 28 mm

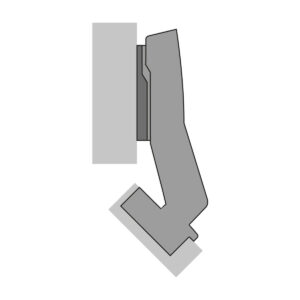

• Door mounting option overlay

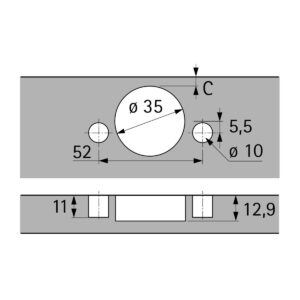

• Drilling pattern TH 52 x 5,5 mm
• Cup depth 12.8 mm
• Installation for pressing in
• Integrated overlay adjustment +2 mm / -2 mm
• Integrated depth adjustment +3 mm / -2 mm

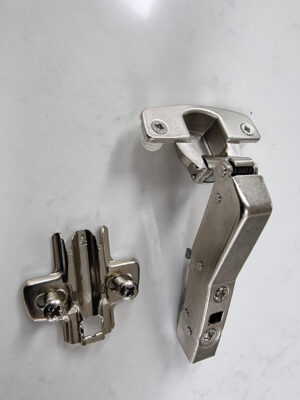

• Height adjustment at mounting plate
• Steel Nickel plated
• Mounting plate provided
