Salice Soft Close Hinge, BLUM Drilling Pattern


SKU: N/A Category:


This is designed for BLUM drilling pattern so if you have 107 or 110 degree hinge that is BLUM that needs to be replaced this is the solution at a fraction of the price.

Also item is in stock and ready to go as there is a shortage of BLUM hinges in the market

Salice Italian brand well known for their hinges

Brand new concealed hinge from Salice with soft-close function. This nickel-plated steel can be used for the doors with thicknesses of 15mm or more. It has cup diameter of 35mm, comes with height adjustment at mounting plate.

The concealed hinge is easy to fit and it is suitable for kitchen/bathroom cabinet doors, furniture kitchen cabinets, cupboard.

  • Brand: Salice
  • Cup Version: same as BLUM
  • Door thickness from 15 mm
  • Cup diameter 35 mm
  • soft close
  • Hinge cup/arm: nickel-plated steel
  • Integrated overlay adjustment + 1,0 mm / – 2,5 mm
  • Integrated cam depth adjustment ± 2 mm
  • Height adjustment at mounting plate ± 2 mm
  • full overlay
  • quality tested item
  • Suit BLUM drilling pattern

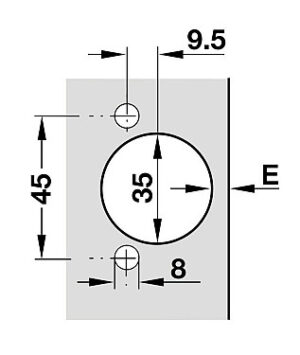

  • bracket sizes centre to centre hole is 32mm
  • hinge screw centre hole to hole 45mm
  • 2 part Product code 329.28.380 and 329.74.513

Additional information


Nickel-plated steel


Free Size – 329.28.380, Free Size – 329.74.513
